PROBLEM
PROBLEM
PROBLEM
The company had a half-made prototype without understanding users' needs
The company had a half-made prototype without understanding users' needs
The company had a half-made prototype without understanding users' needs
Existing prototype

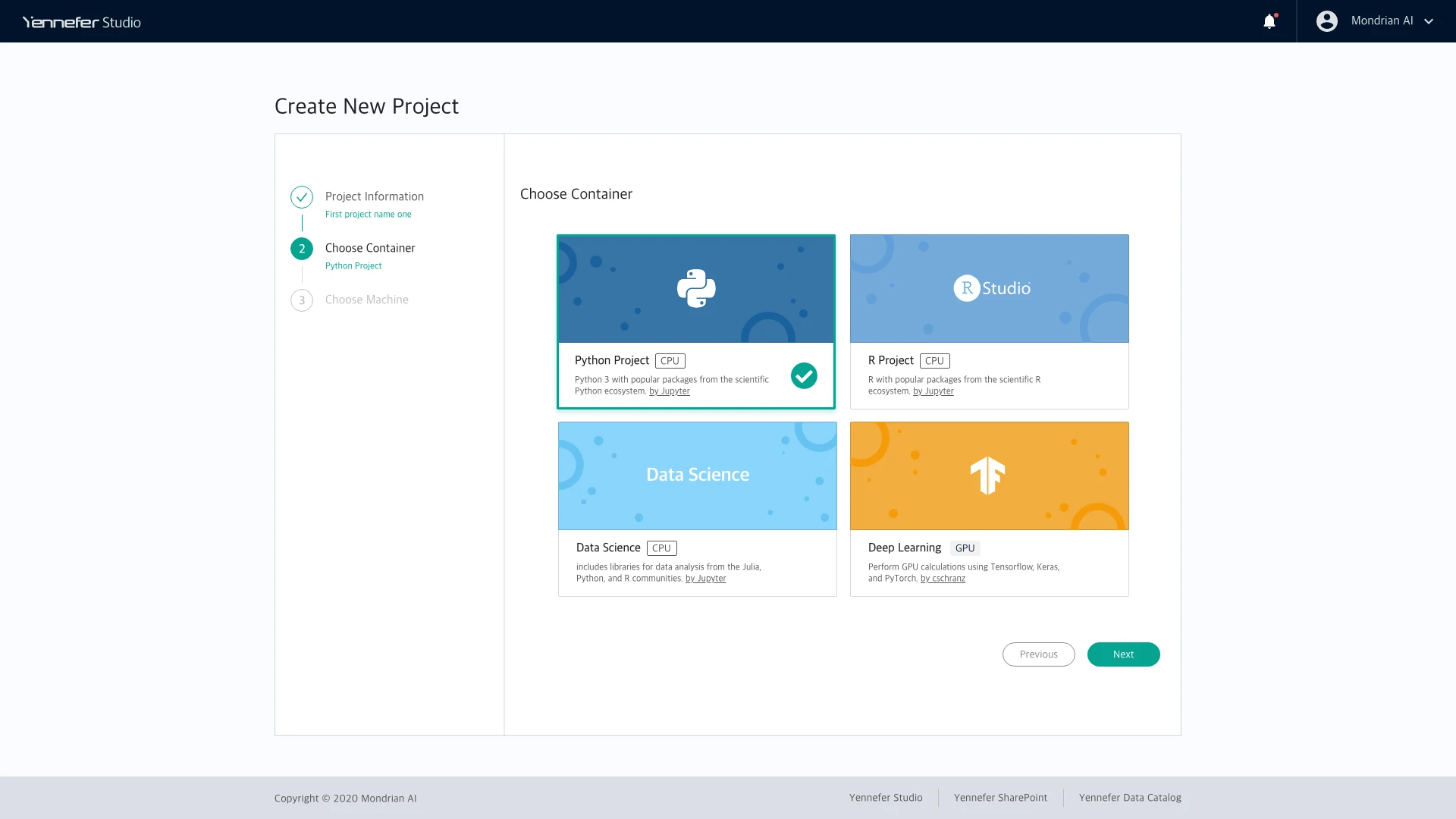

1. Yennefer Studio
1. Yennefer Studio
1. Yennefer Studio
2. Data Catalog
2. Data Catalog
2. Data Catalog
3. AI Dev Tool
3. AI Dev Tool
3. AI Dev Tool
4. Resource Dashboard
4. Resource Dashboard
4. Resource Dashboard
Research
Research
Research
PROCESS
PROCESS
PROCESS
End-to-end process with Start-up environment
End-to-end process with Start-up environment
End-to-end process with Start-up environment
I used 5 user research methods to understand the project’s goal, the enterprise AI platform’s trend, and AI researchers’ pain points. I aligned with our product management counterparts to develop design roadmaps and research plans.
I used 5 user research methods to understand the project’s goal, the enterprise AI platform’s trend, and AI researchers’ pain points. I aligned with our product management counterparts to develop design roadmaps and research plans.
I used 5 user research methods to understand the project’s goal, the enterprise AI platform’s trend, and AI researchers’ pain points. I aligned with our product management counterparts to develop design roadmaps and research plans.
Heuristic Evalution
Heuristic Evalution
Wireframes
What’s the first image in our minds
What’s the first image in our minds
What’s the first image in our minds
10+ User interviews
10+ User interviews
AI Engineering
What’s the first image in our minds
What’s the first image in our minds
What’s the first image in our minds
20+ Competitor analysis
20+ Competitor analysis
20+ Competitor analysis
What’s the first image in our minds
What’s the first image in our minds
What’s the first image in our minds
KEY INSIGHTS
KEY INSIGHTS
KEY INSIGHTS
AI Researcher's pain points
AI Researcher's pain points
AI Researcher's pain points
❓
❓
❓
Irrelevant information
Irrelevant information
Irrelevant information
Lack of personalized and contextualized reponse
Lack of personalized and contextualized reponse
Lack of personalized and contextualized reponse
🧩
🧩
🧩
Optimize limited resources
Optimize limited resources
Optimize limited resources
Overwhelming information and decision paralysis
Overwhelming information and decision paralysis
Overwhelming information and decision paralysis
⏳
⏳
⏳
Time consuming
Time consuming
Time consuming
Inefficiency in communication and trust deficiency
Inefficiency in communication and trust deficiency
Inefficiency in communication and trust deficiency
DESIGN GOAL
DESIGN GOAL
DESIGN GOAL
How can we enhance the AI research experience by simplifying access to and management of resources?
How might we simplify resource access and management for AI researchers?
How can we enhance the AI research experience by simplifying access to and management of resources?
Design
Design
Design
CHALLENGE 1
CHALLENGE 1
CHALLENGE 1
How to get a glance at project status?
How might users quickly understand project status?
How to get a glance at project status?
Based on interview findings, we defined the crucial information to get a glance project status.
The new platform went through many iterations before we had a shippable design candidate. As I unify platforms to one product, I added project lists and statuses, accessible data, and documentation ideas into the core wireframe and created a quick design prototype to test. After validation, I improved the design.
Based on user interviews, we identified the key information needed for a quick overview of project status.
As we unified multiple platforms into a single product, I introduced a centralized project list with clear status indicators, accessible data, and integrated documentation. I created rapid wireframes and a prototype to test the concept, then refined the design based on validation.
Based on interview findings, we defined the crucial information to get a glance project status.
The new platform went through many iterations before we had a shippable design candidate. As I unify platforms to one product, I added project lists and statuses, accessible data, and documentation ideas into the core wireframe and created a quick design prototype to test. After validation, I improved the design.
DESIGN DECISION 1
DESIGN DECISION 1
DESIGN DECISION 1
Easy access to all project status
Make project status easy to access
Easy access to all project status
1. Quick scan project status on the main page
1. Quick status overview on the main dashboard
1. Quick scan project status on the main page
2. Easy access to current project information and description
2. Fast access to project details and descriptions
2. Easy access to current project information and description
CHALLENGE 2
CHALLENGE 2
CHALLENGE 2
How to easily manage computing resources?
How to easily manage computing resources?
How to easily manage computing resources?
To evaluate our idea quickly through an MVP test, I defined key scenarios and features with PM. We had 3 weeks sprint to build a fully working demo application, including design, development, and QA test.
To evaluate our idea quickly through an MVP test, I defined key scenarios and features with PM. We had 3 weeks sprint to build a fully working demo application, including design, development, and QA test.
To evaluate our idea quickly through an MVP test, I defined key scenarios and features with PM. We had 3 weeks sprint to build a fully working demo application, including design, development, and QA test.
Option 1
Option 1
Wireframes
Option 2
Option 2
AI Engineering
✅ Option 3
✅ Option 3
✅ Option 3
Pros ✅:
The chart has the proper size for width and height to understand the data
Cons 🚫:
Computing resource data and charts are not aligned, so it’s not intuitive to understand
Pros ✅:
The chart has the proper size for width and height to understand the data
Cons 🚫:
Computing resource data and charts are not aligned, so it’s not intuitive to understand
Pros ✅:
Computing resources data and charts are aligned, and easy to understand
Cons 🚫:
The chart’s width is too narrow to scroll the past history or see the overall status
Pros ✅:
Computing resources data and charts are aligned, and easy to understand
Cons 🚫:
The chart’s width is too narrow to scroll the past history or see the overall status
Pros ✅:
A wider chart’s width helps easy to scroll the chart
Computing resources data and charts are aligned, and easy to understand
Followed the F-Pattern interface which is the most common user eye-scanning patterns
Cons 🚫:
The chart had few Y-values, so it’s hard to see the detailed chart
Pros ✅:
A wider chart’s width helps easy to scroll the chart
Computing resources data and charts are aligned, and easy to understand
Followed the F-Pattern interface which is the most common user eye-scanning patterns
Cons 🚫:
The chart had few Y-values, so it’s hard to see the detailed chart
FINAL DESIGN
FINAL DESIGN
FINAL DESIGN

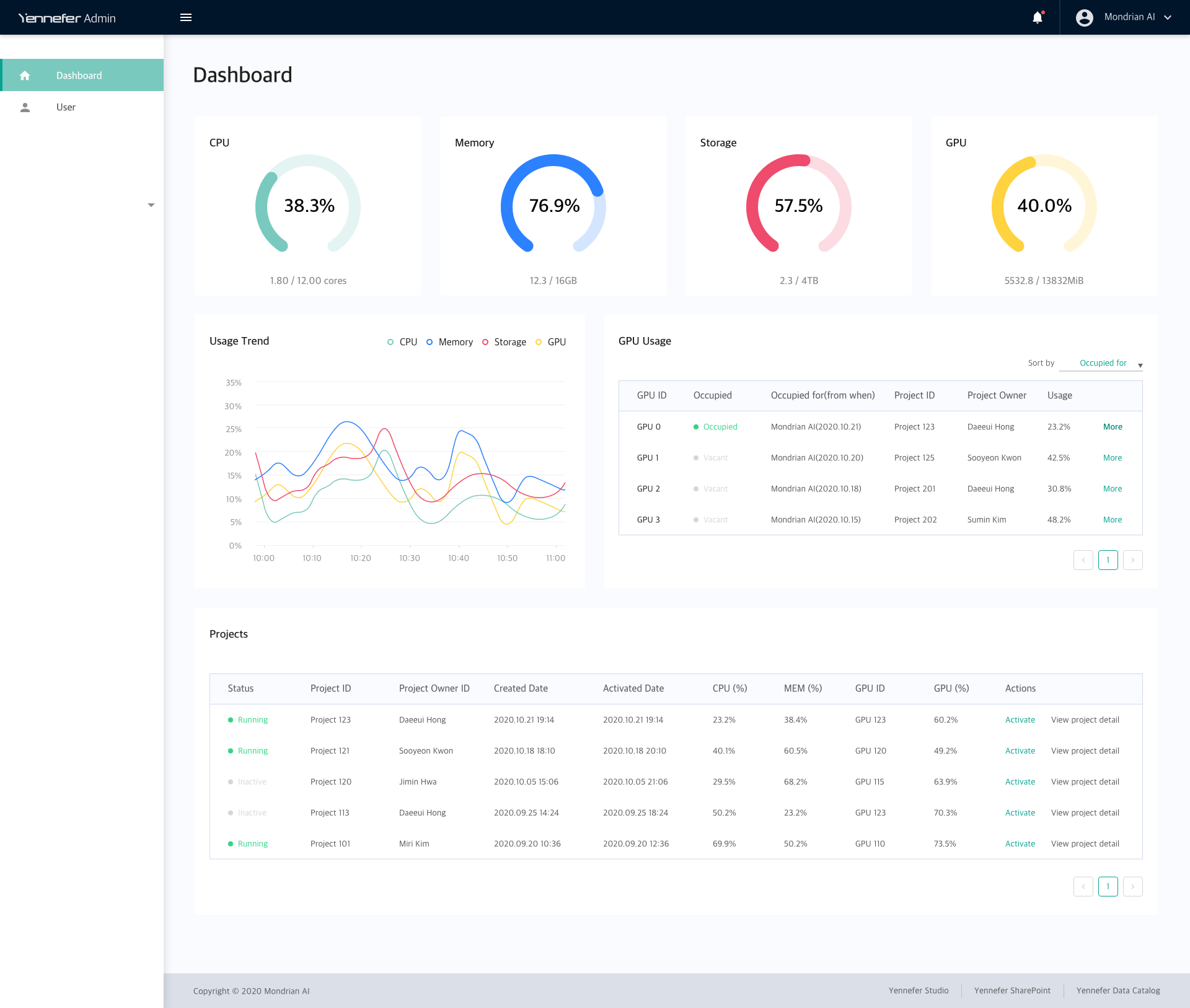

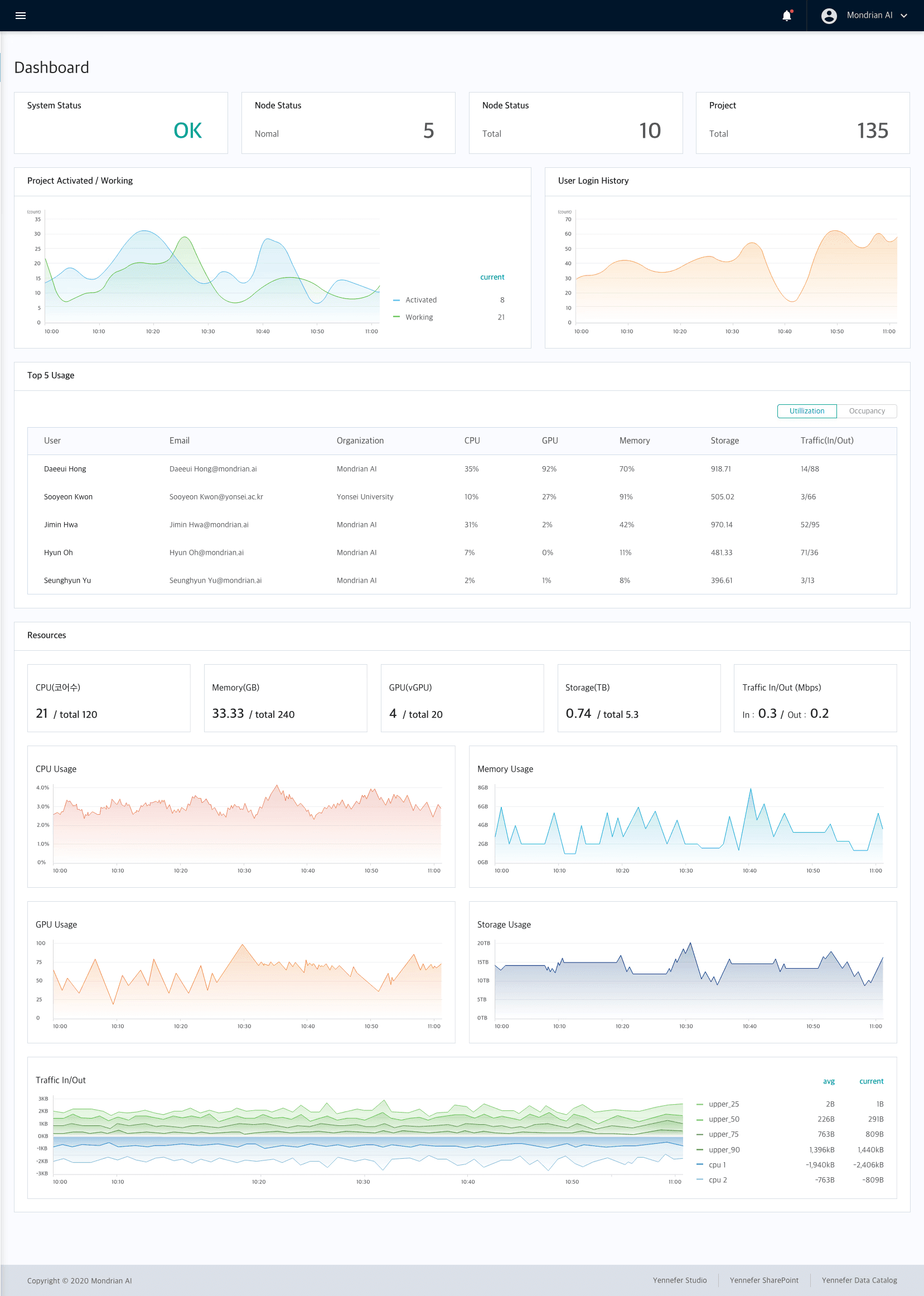

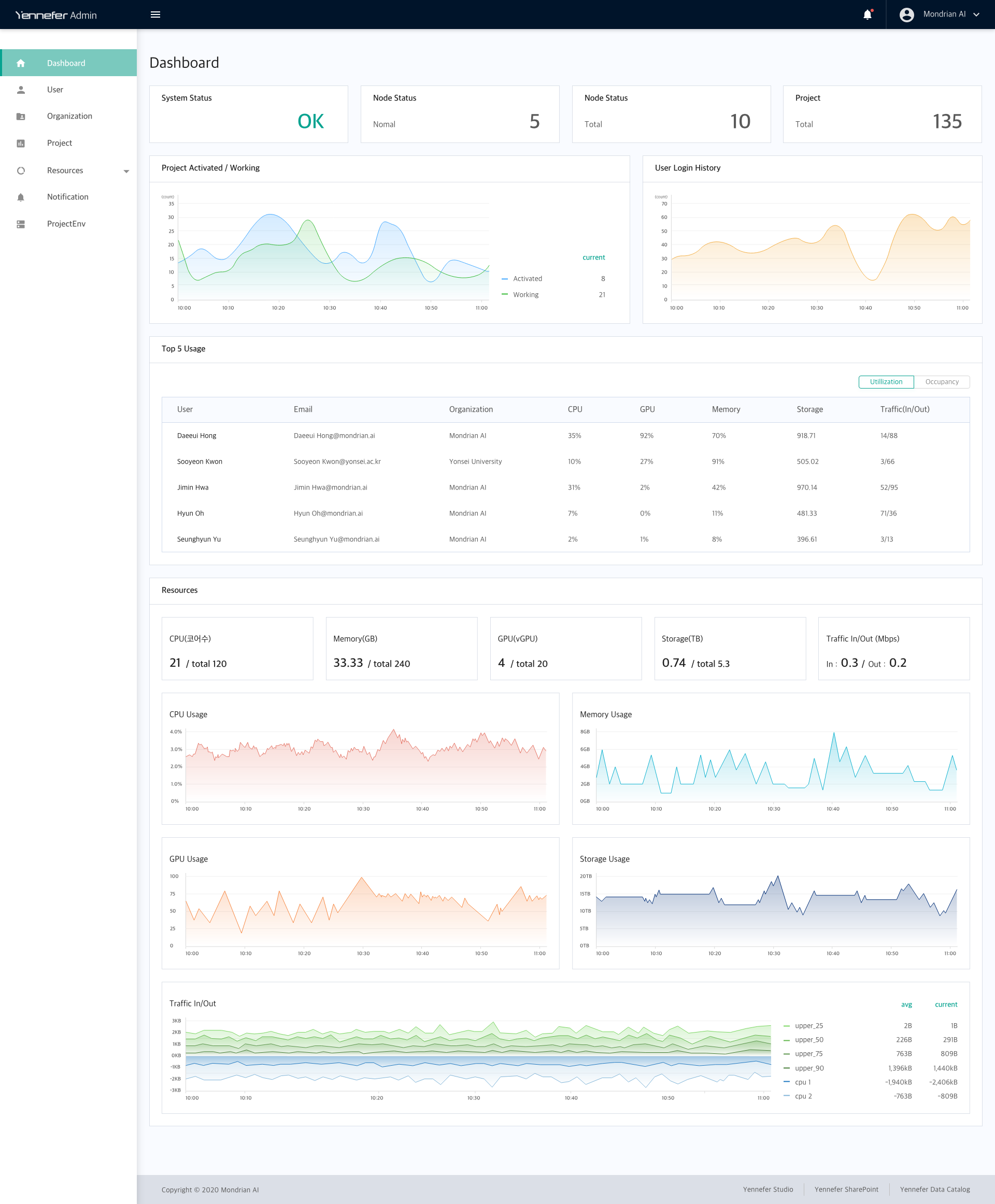

Admin Dashboard
Admin Dashboard
Admin Dashboard
Intuitive Data Visualization
Intuitive Data Visualization
Intuitive Data Visualization
Before
Before
Before
After
After

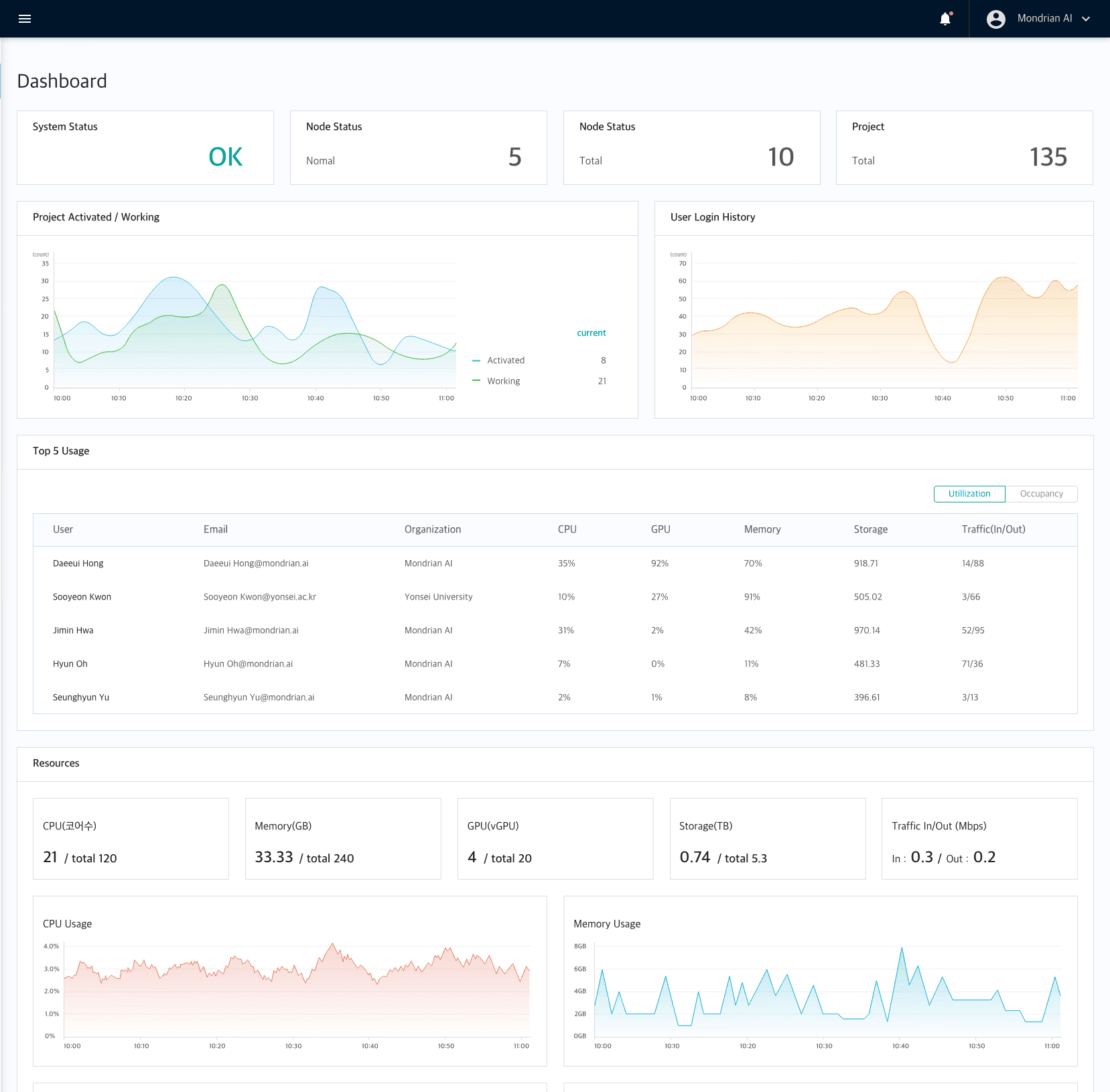

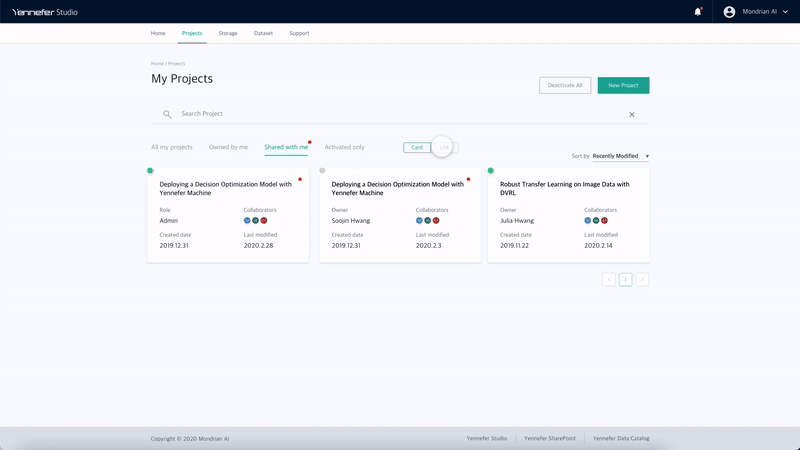

Yennefer Studio Main page
Yennefer Studio Main page
Quick Scan for Project Status
Quick Scan for Project Status
Quick Scan for Project Status
Before
Before
After
After

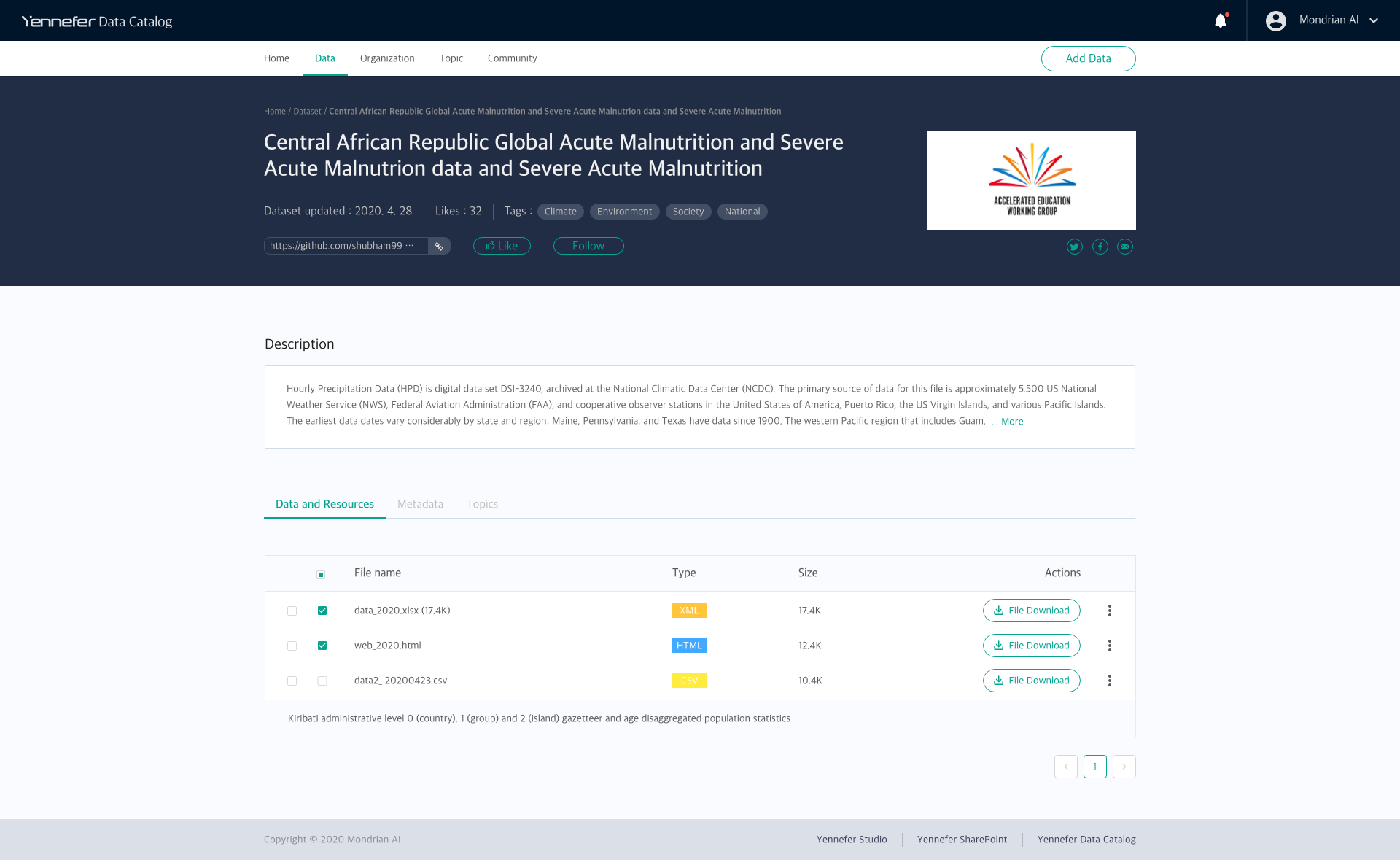

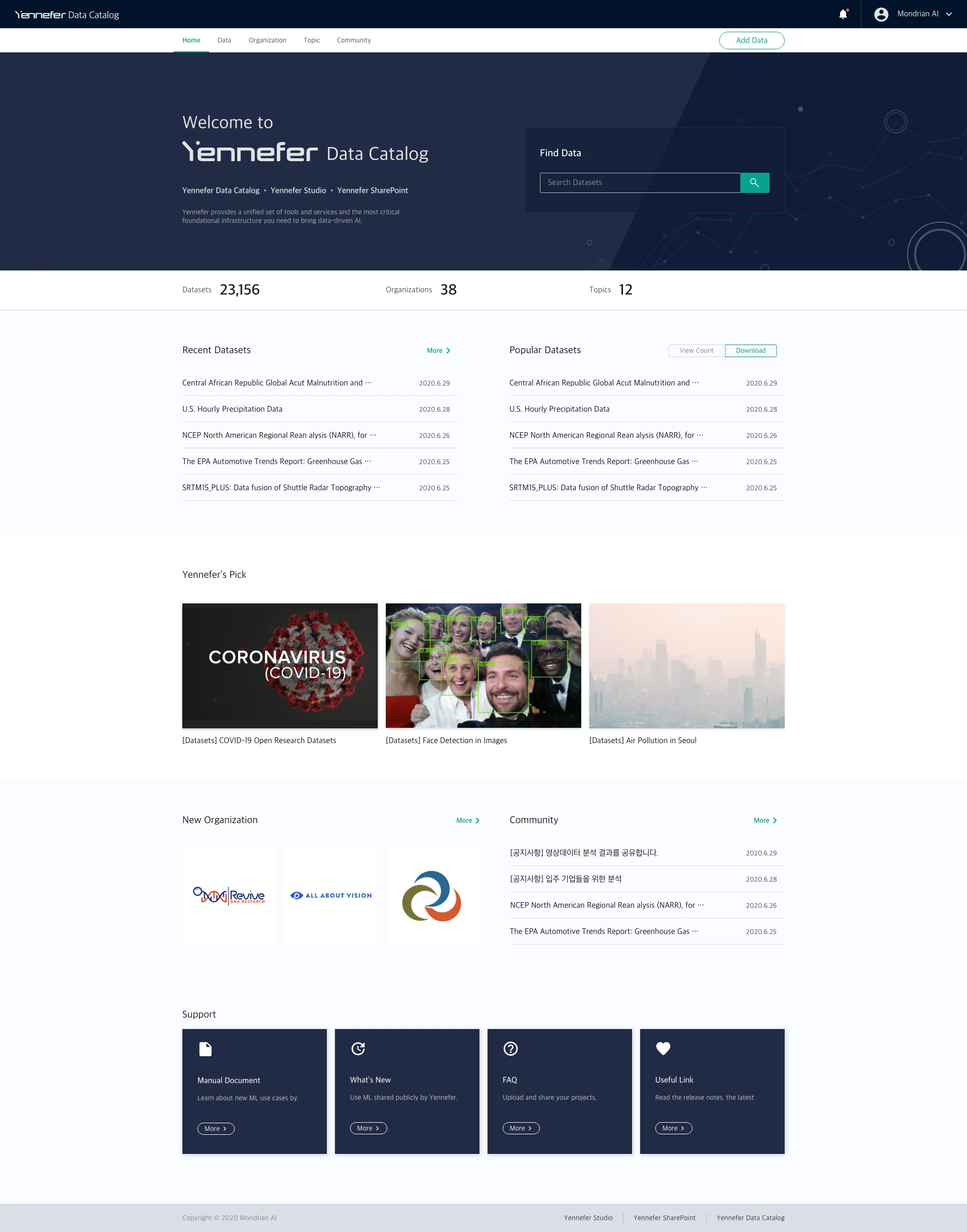

Yennefer Data Hub
Yennefer Data Hub
Instant Access to Data
Instant Access to Data
Instant Access to Data
After
After
Yennefer Studio Main page
Yennefer Studio Main page
Information Hierarchy

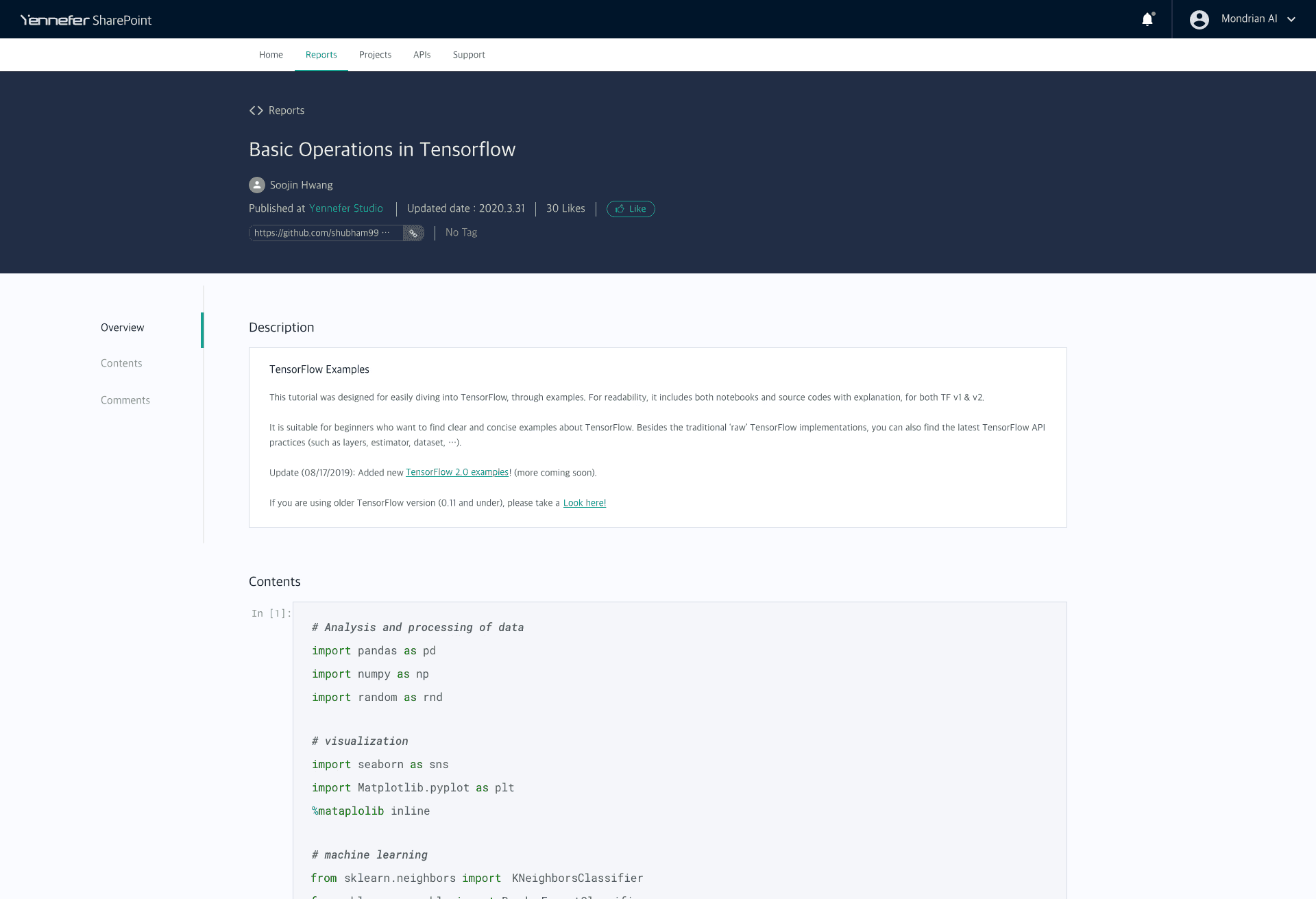

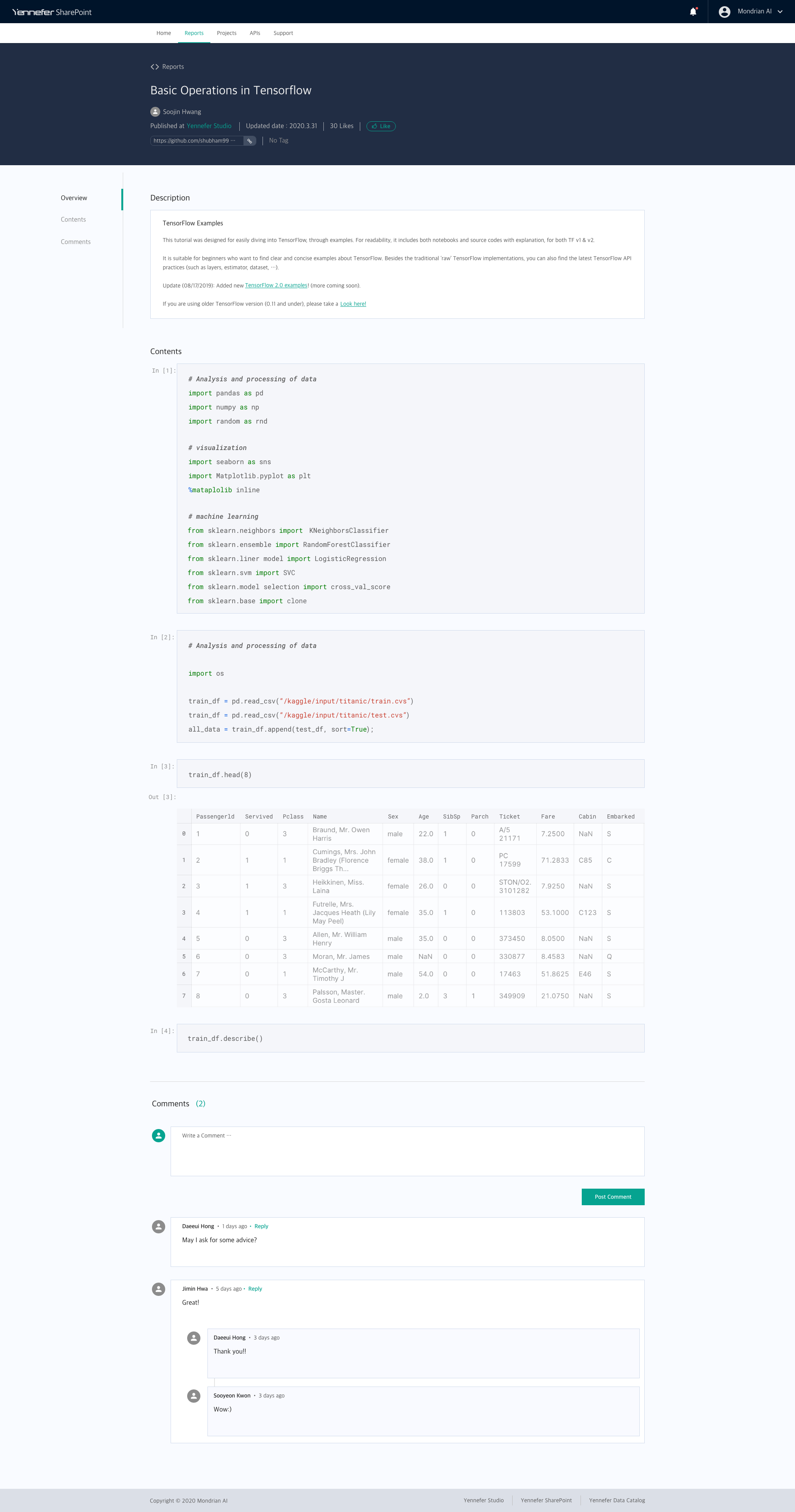

Yennefer SharePoint
Yennefer SharePoint
